How to transfer product to SAP S/4 HANA from Autodesk Vault?
      AV2ERP is an integration software which seamlessly transfers data from Autodesk vault to any ERP system.
Autodesk Vault - SAP S/4HANA Cloud Integration
Easy to set up and also comes with advanced functionality to handle complex scenarios

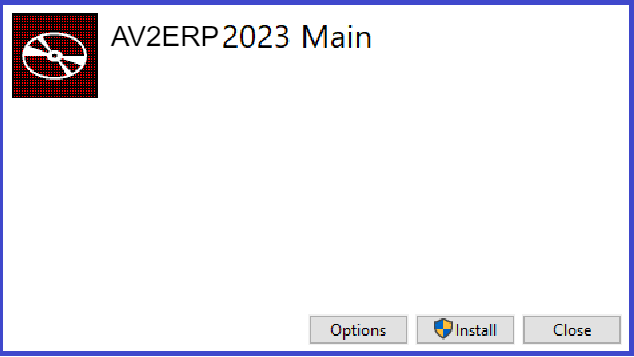

- Install the extension that is AV2ERP provided by PLM CAD utilities AS
Â
- Before transferring please make sure that AV2ERP is installed.

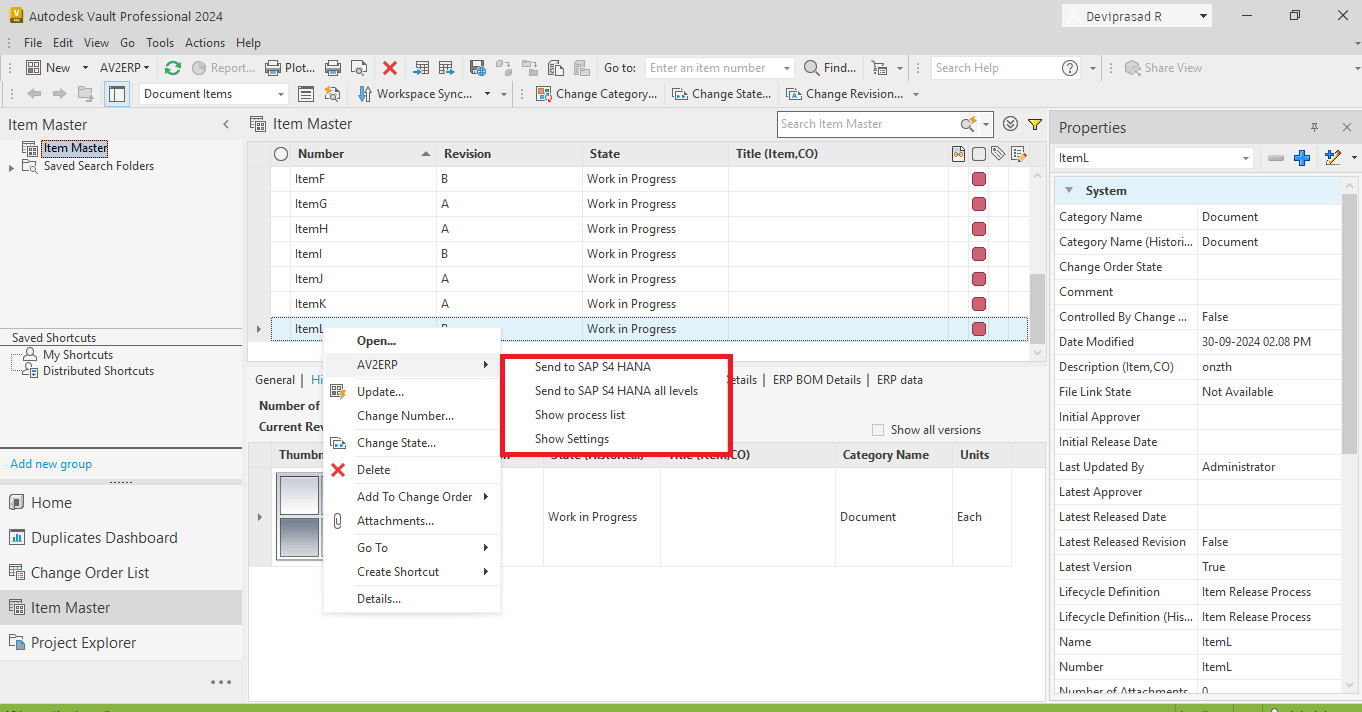

- You can check this by right-clicking on the item that shows the highlighted options as shown in the previous picture.

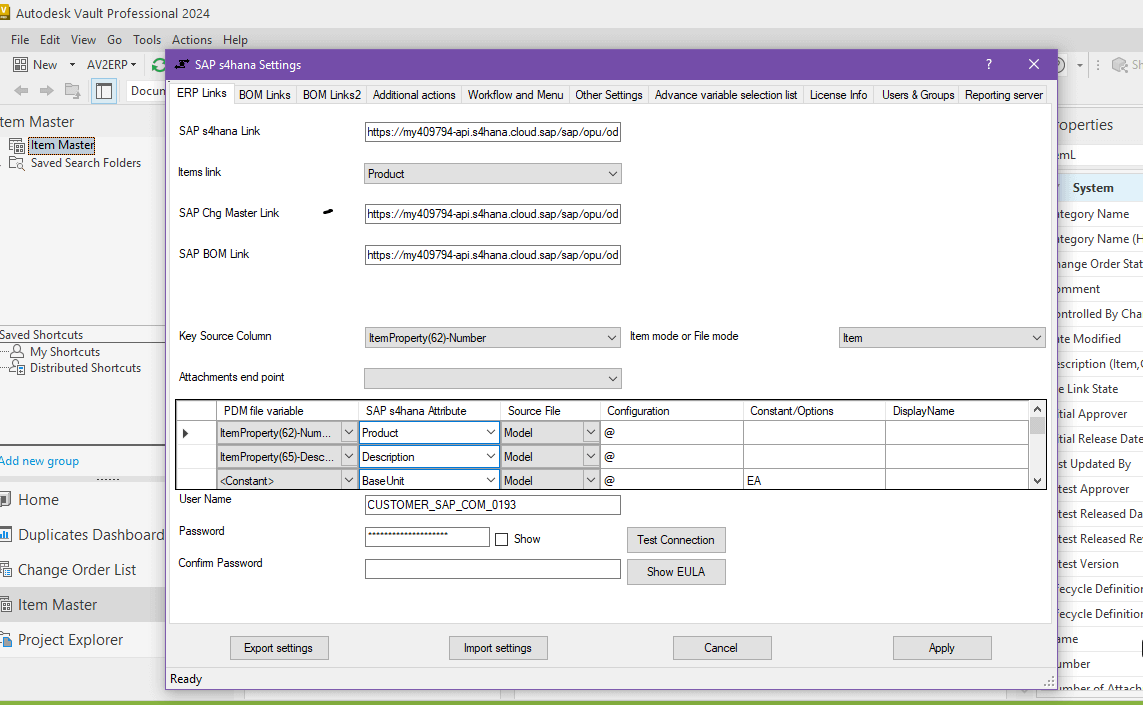

- Click on “show settings” to display settings dialog.
- Configure integration settings for SAP s4 HANA using OData webservices.Â
Â
Â
- Before sending the data to SAP S4 Hana.

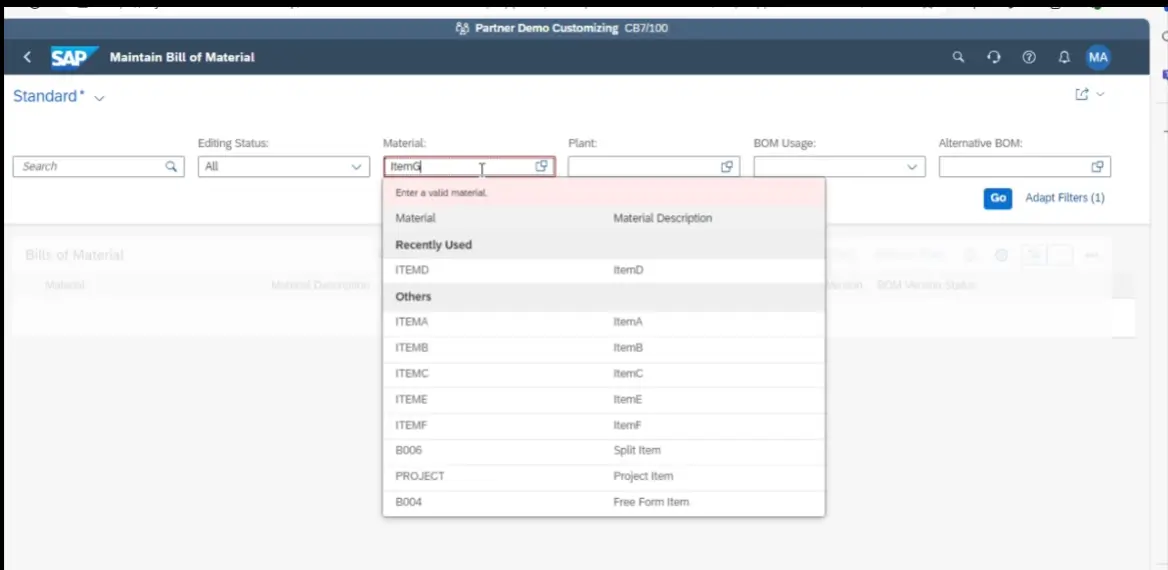

- Go and check whether product is there or not in SAP S4 Hana.
- As you can see in the picture that product is not present in SAP S4 Hana.
- Now will transfer the data to SAP S4 HANA.

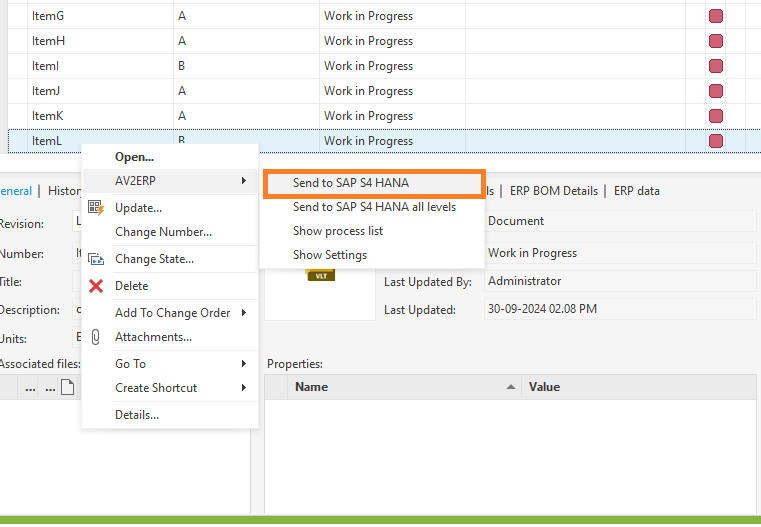

- You can transfer it by right clicking on the item and select “Send to SAP S4 HANA” or “Send to SAP S4 HANA all levels”.
Â

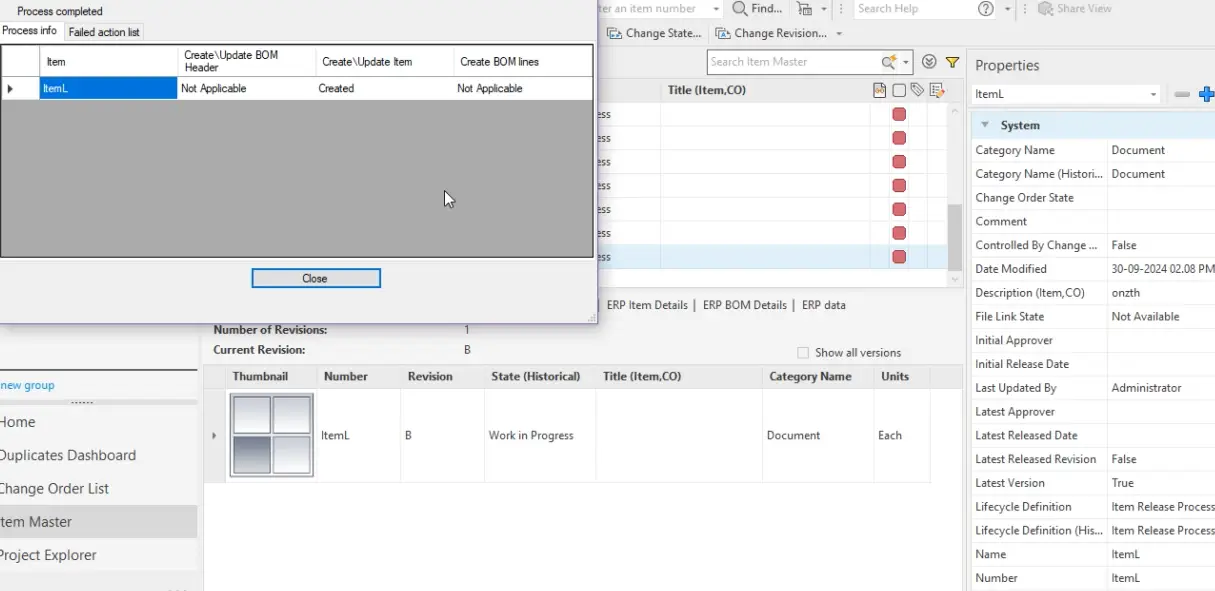

- This process dialog shows the status about the process.
- If items are newly transferred the status will be marked as “Created”,if already items exist then the status would be “Updated”,if any error occured those will be stated as “Failed”.

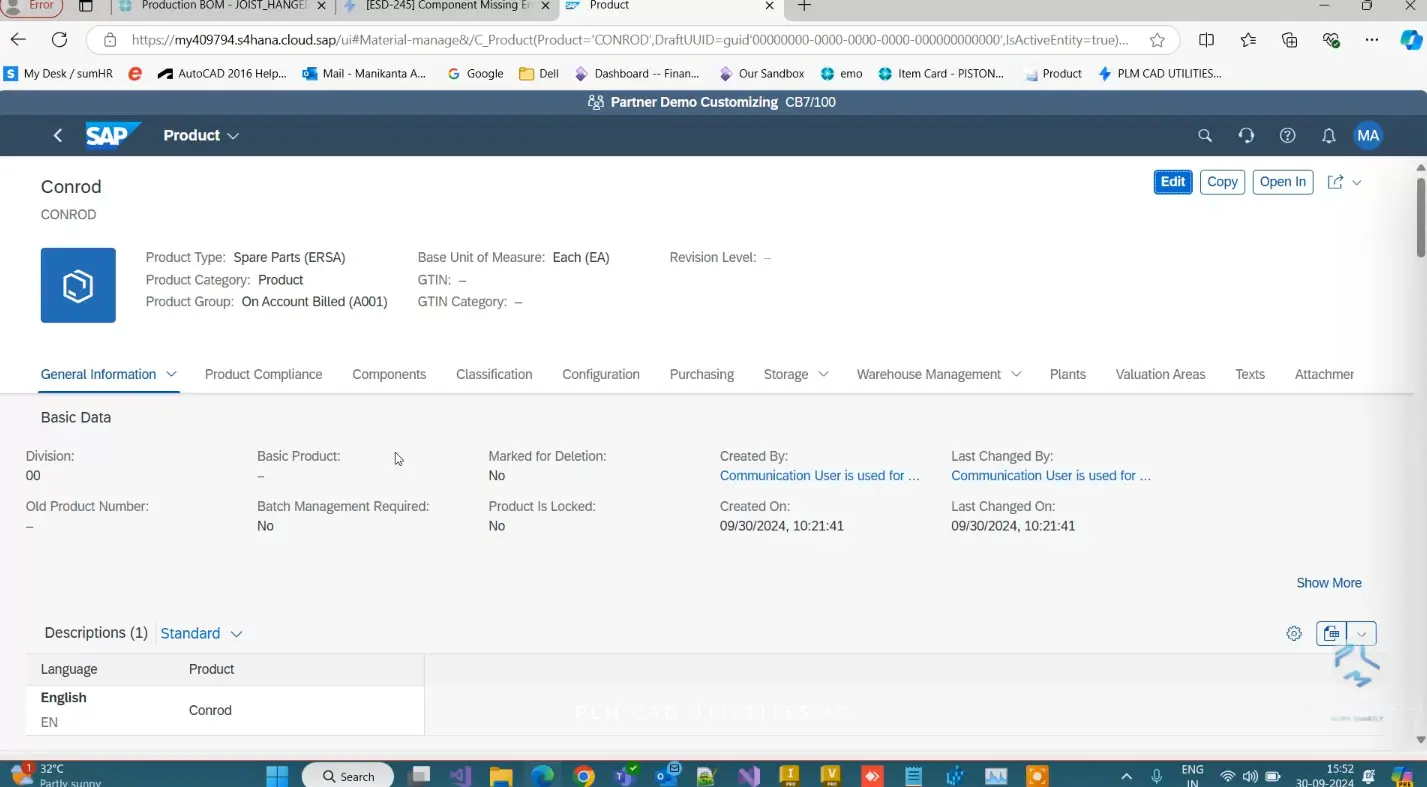

- Go and check whether product is transferred in SAP S4 HANA
- Product is successfully transferred to SAP S4 HANA
